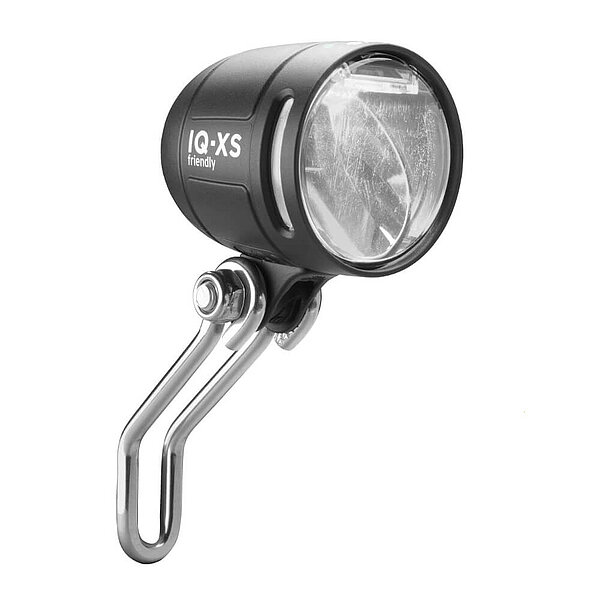

IQ-XS E friendly
E-bike headlight
- 80 Lux
- 100 % bio-degradable plastic casing
- Daytime running light
- Extensive beam pattern and Close range light
89,90 €
Article number 516711GR42TS-04
Headlight with bio-degradable plastic casing for more sustainability.
The IQ-XS friendly by busch+müller is the first in a new product range of headlights with a plastic casing that is bio-degradable, 100% free of residues. This development makes it possible to manufacture plastic component parts more environmentally friendly whilst maintaining the quality levels of conventional plastic parts. The headlight also offers an impressive 80 Lux light output, sensor-controlled daytime LEDs, standlight and a screw-on front reflector.
„Friendly“ is part of a company philosophy that involves all operational sectors of busch+müller. Processes are and will be continually analysed and adapted. Always with the goal of protecting the environment and operating at a higher level of sustainability. One example is the use of heat from the moulding department: The excess heat of the moulding machines is collected and used to power the underfloor heating of the production facility and storage depot. Additionally, all plastic blister packaging will be faded out in favour of ecologically sustainable paper packaging originating from FSC-certified forestry. This guarantees that all lumbered trees are reforested completely. Our goal as busch+müller is to become more and more „friendly“, step by step.
Lux image comparison
Compare Lux value
17 Lux
Compare Lux value
30 Lux
Compare Lux value
35 Lux
Compare Lux value
40 Lux
Compare Lux value
50 Lux
Compare Lux value
60 Lux
Compare Lux value
70 Lux
Compare Lux value
80 Lux
Compare Lux value
100 Lux
Compare Lux value
120 Lux
Compare Lux value
120 Lux
Compare Lux value
150 Lux
Compare Lux value
150 Lux
Compare Lux value
250 Lux
Compare Lux value
250 Lux
Select comparison value
Compare Lux value
17 Lux
Compare Lux value
30 Lux
Compare Lux value
35 Lux
Compare Lux value
40 Lux
Compare Lux value
50 Lux
Compare Lux value
60 Lux
Compare Lux value
70 Lux
Compare Lux value
80 Lux
Compare Lux value
100 Lux
Compare Lux value
120 Lux
Compare Lux value
120 Lux
Compare Lux value
150 Lux
Compare Lux value
150 Lux
Compare Lux value
250 Lux
Compare Lux value
250 Lux
Select comparison value
Product benefits
Excellent close-range illumination
Resource-saving, environmentally friendly option
Attributes
| Feature | Value |
|---|---|
| Low beam in Lux | 80 |
| Material | Plastic |
| Dimensions in mm | 50 x 50 x 45 |
| Field of use | Touring bikes |
| StVZO-approval | Yes |
| Power supply range | 6-42V |
| Power consumption | 3W |
| Mounting brackets | Aluminium bracket for fork mounting |
| Handlebar mounting | Yes |
| Fork mounting | Yes |
| Product weight in g | 90 |
Comparison of selected products
IQ-XS E friendly
E-bike headlight
Price
89,90 €
Low beam
80 Lux
Spray- and rainwater-proof
-
Material
Plastic
Dimensions
50 x 50 x 45 mm
Field of use
Touring bikes
StVZO-approval
Yes
High beam
- Lux
Day Ride Light
-
Daytime running LEDs
-
Power supply range
6-42V
Power consumption
3W
Mounting brackets
Aluminium bracket for fork mounting
Handlebar mounting
Yes
Suitable for mounting under the handlebars
-
Fork mounting
Yes
Product weight
90 g
Briq-S E
E-bike headlight
Price
39,90 €
Low beam
60 Lux
Spray- and rainwater-proof
Yes
Material
Plastic
Dimensions
60 x 35 x 54 mm
Field of use
City bikes
StVZO-approval
Yes
High beam
- Lux
Day Ride Light
-
Daytime running LEDs
Yes
Power supply range
9-15V DC
Power consumption
3,2W
Mounting brackets
Stainless steel bracket for fork mounting
Handlebar mounting
Yes
Suitable for mounting under the handlebars
-
Fork mounting
Yes
Product weight
75 g
IQ-XS E Highbeam
E-bike headlight
Price
129,90 €
Low beam
100 Lux
Spray- and rainwater-proof
Yes
Material
Aluminium
Dimensions
51 x 44 x 50 mm
Field of use
City bikes
StVZO-approval
Yes
High beam
150 Lux
Day Ride Light
-
Daytime running LEDs
-
Power supply range
9-48V DC
Power consumption
11W
Mounting brackets
Aluminium bracket for fork mounting
Handlebar mounting
Yes
Suitable for mounting under the handlebars
-
Fork mounting
Yes
Product weight
120 g
IQ-X E
E-bike headlight
Price
169,90 €
Low beam
150 Lux
Spray- and rainwater-proof
Yes
Material
Aluminium
Dimensions
55 x 46 x 54 mm
Field of use
City bikes
StVZO-approval
Yes
High beam
- Lux
Day Ride Light
Yes
Daytime running LEDs
-
Power supply range
6-60V DC
Power consumption
7,5W
Mounting brackets
Aluminium bracket for fork mounting
Handlebar mounting
Yes
Suitable for mounting under the handlebars
Yes
Fork mounting
Yes
Product weight
120 g
